Thermal Imaging Devices

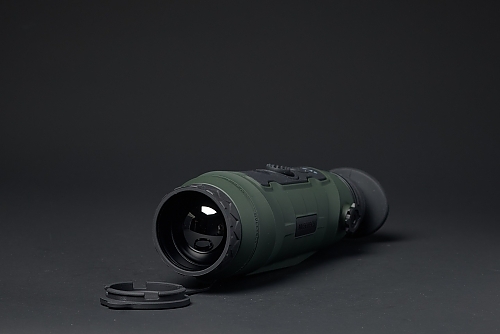

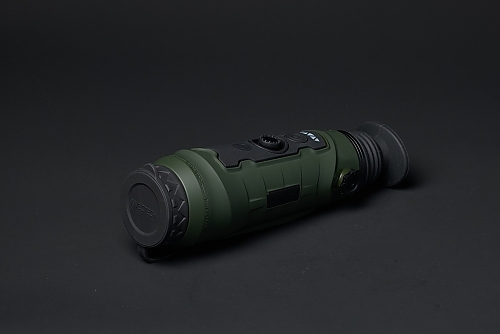

The thermal imaging monocular has a unique combination of characteristics that makes it an ideal tool for hunting operations. Thanks to its high resolution and sensitivity, it provides maximum efficiency even in the most difficult conditions. The key advantages of the monocular include:

1. Maximum sensitivity: With a NETD of ≤18mk@300k, this thermal imager is capable of detecting even the slightest temperature changes, allowing it to recognize objects at long distances with high accuracy.
2. Multifunctionality: This device is suitable for a variety of hunting applications, from reconnaissance to security and surveillance, making it a versatile tool for any situation.
3. Weatherproof: The monocular works reliably in all weather conditions, providing stable operation in temperatures ranging from -25℃ to +55℃. In addition, the IP67 protection level guarantees its resistance to dust and moisture, and can withstand drops from a height of up to 1 meter.
4. Improved matrix and new AMOLED display: The high quality sensor and 1024×768 resolution display provide a clear and detailed image, which is especially important for accurate surveillance at night or in low visibility conditions.
5. Long operating time and user-friendly interface: The built-in rechargeable lithium-ion battery provides not less than 16 hours of continuous operation, allowing the device to be used for extended missions without the need to recharge. The intuitive interface and support for Wi-Fi remote control make the device easy and efficient to use.
6. Advanced sensors and digital functions: Compass, azimuth, altitude and temperature sensors, as well as GPS support make this monocular indispensable for complete terrain control and orientation in difficult conditions. The digital interface allows you to connect additional accessories and save data to the built-in 64 GB memory card.
7. Light weight and compact size:Weighs only 620 g and has a compact size (67x66x224 mm), making it easy to transport and use in the field.

This thermal imaging monocular embodies the best of modern technology, providing exceptional reliability, accuracy, and ease of use. It will become a reliable partner in any hunting expedition, ensuring the safety and effectiveness of your actions.

NETD: ≤18mk@300k

‍Image Enhancement: IDE, HDR

‍Optical zoom: 2.8x

‍Digital zoom: 1x ~ 4x continuous

‍Noise reduction: 3D DNR

‍Reticle: 6+, adjustable coordinates

‍Compass: Yes

‍Azimuth: Yes

‍Altitude sensor: Yes

‍Temperature sensor: Yes

‍Connection: Type-C port for charging, data reading, digital video output

‍WI-FI: Two-way Wi-Fi connection and remote control APP NVECTECH

‍Weight (with Battery): 620 g

‍Battery life: ≥ 16 hours

‍Detection range: 2900m

‍Field of View Angle: 8.8° x 7.0°

‍Lens: 50 mm

‍Resolution / Pixel Distance: 640 x 512/12μm

‍Spectral Range: 8~14μm

‍Detector Type: Microbolometer Vox

‍Frame Rate: 50 Hz

‍AMOLED: 0.39 inches, resolution 1024×768

‍Eye relief: 40 mm

‍Diopter Adjustment: -5 ~ +5

‍GPS: Yes

‍Memory Card: 64 Gb

‍Thermal Tracking: Yes

‍Photo, Recording, Playback: Yes

‍Battery Type: Built-in lithium-ion battery (18650 x 2)

‍Protection Level: IP67, drop resistance 1 meter

‍Operating Temperature: -25℃～+55℃

‍Dimensions (mm): 67x66x224

This thermal imaging monocular is an uncompromising solution for professional use in extreme conditions. Its advanced technology provides a high level of accuracy and reliability, making it an indispensable tool for hunting operations. The device has several key advantages:

1.  Incredible sensitivity: With a NETD of ≤18mk@300k, the monocular is able to detect even the slightest temperature changes, providing extremely clear images in all lighting conditions, including complete darkness.
2. Multifunctionality: Ideal for a variety of hunting missions such as reconnaissance, long-range surveillance, and facility security. Built-in sensors, including compass, azimuth, and altitude sensors, provide full control over the situation on the ground.
3. Reliability in all weather conditions: The device is designed to operate stably in a wide temperature range from -25℃ to +55℃, making it ideal for use in a wide variety of climates. The IP67 protection level guarantees resistance to moisture and dust, as well as mechanical damage from drops.
4. Improved matrix and AMOLED display: The high resolution of the matrix and the latest AMOLED display with a resolution of 1024×768 provide exceptional image clarity and detail, which is especially important for effective observation and identification of objects.
5. Long battery life: The built-in rechargeable lithium-ion battery provides up to 20 hours of continuous operation, making this monocular ideal for long missions without the need for frequent recharging.
6. Lightweight and compact: The device weighs only 550 g and has a convenient size of 67x66x221 mm, which ensures comfort during long periods of use and transportation.
7. Digital interface and Wi-Fi connection: This thermal imager supports a modern digital interface for connecting new accessories and has built-in Wi-Fi, which allows remote control via a special application, providing additional comfort and flexibility in use.

This monocular is an indispensable tool in difficult conditions and will become a reliable tool for the successful completion of any hunting mission.

NETD: ≤18mk@300k

‍Optical zoom: 1.8x

‍Digital zoom: 1x ~ 4x continuous

‍Noise reduction: 3D DNR

‍Reticle: 6+, adjustable coordinates

‍Compass: Yes

‍Azimuth: Yes

‍Altitude sensor: Yes

‍Temperature sensor: Yes

‍Connection: Type-C port for charging, data reading, digital video output

‍Weight (with Battery): 550 g

‍Battery life: ≤ 20 hours

‍Detection range: 1200m

‍Field of View Angle: 13.8° x 10.4°

‍Lens: 19 mm

‍Resolution / Pixel Distance: 384 x 288/12μm

‍Spectral Range8~14μm

‍Detector Type: Microbolometer Vox

‍Frame Rate: 50 Hz

‍Noise Reduction: 3D noise reduction

‍AMOLED: 0.39 inches, resolution 1024×768

‍Eye relief: 40 mm

‍Diopter Adjustment: -5 ~ +5

‍GPS: Yes

‍Memory Card: 64 Gb

‍Thermal Tracking: Yes

‍Photo, Recording, Playback: Yes

‍Battery Type: Built-in lithium-ion battery (18650 x 2)

‍Protection Level: IP67, drop resistance 1 meter

‍Operating Temperature: -25℃～+55℃

‍Dimensions (mm): 67x66x221

This model ofthermal imaging monocular offers advanced technologies to ensure maximum performance in challenging conditions. Its exceptional performance makes it the perfect choice for professional hunting operations. Its main advantages include:

1. High resolution and sensitivity: The monocular provides extremely accurate transmission of thermal signals thanks to NETD ≤18mk@300k, which allows you to perfectly distinguish objects in the most difficult lighting and weather conditions.
2. Multifunctionality: The device is suitable for a wide range of hunting tasks: from surveillance and reconnaissance to territory protection. Built-in sensors, such as compass, azimuth and altimeter, ensure complete orientation on the ground.
3. Powerful protection: Thanks to its IP67 rating, the monocular works reliably in conditions of high humidity, dust, and even drops of up to 1 meter. This makes it a durable and reliable tool for the field.
4. Improved image quality: Thanks to the innovative 1024×768 AMOLED display and high-quality sensor, the thermal imager delivers a clear and vivid image that makes it easy to identify objects even at a great distance.
5. Long battery life: The built-in rechargeable battery provides up to 20 hours of uninterrupted operation, allowing for extended operations without the need for frequent recharging. This is especially important during missions where there is no access to power sources.
6. Convenience and portability: The compact design and light weight make this monocular easy to transport and use in any environment. The device weighs only 560 g, which makes it comfortable to wear for long periods of time.
7. Intelligent features and connectivity: The monocular is equipped with a modern digital interface for connecting new accessories and supports Wi-Fi remote control, which provides additional features for convenient and efficient use.

This monocular combines advanced technology with high reliability, making it an ideal tool for hunting missions in any environment.

NETD: ≤18mk@300k

‍Optical zoom: 2.4x

‍Digital zoom: 1x ~ 4x continuous

‍Noise reduction: 3D DNR

‍Reticle: 6+, adjustable coordinates

‍Compass: Yes

‍Azimuth: Yes

‍Altitude sensor: Yes

‍Temperature sensor: Yes

‍Connection: Type-C port for charging, data reading, digital video output

‍Weight (with Battery): 560 g

‍Battery life: ≤ 20 hours

‍Detection range: 1500m

‍Field of View Angle: 10.5° x 7.9°

‍Lens: 25mm

‍Resolution / Pixel Distance: 384 x 288/12μm

‍Spectral Range: 8~14μm

‍Detector Type: VOx Microbolometer

‍Frame Rate: 50Hz

‍Noise Reduction: 3D Noise Reduction

‍AMOLED: 0.39 inches, resolution 1024×768

‍Eye relief: 40mm

‍Diopter Adjustment: -5 ~ +5

‍GPS: Yes

‍Memory Card: 64Gb

‍Thermal Tracking: Yes

‍Photo, Recording, Playback: Yes

‍Battery TypeInternal lithium-ion battery (18650 x 2)

‍Protection Level: IP67, 1 meter drop resistance

‍Operating Temperature: -25℃～+55℃

‍Dimensions (mm): 67x66x221

This thermal imaging monocular offers unparalleled accuracy and reliability, making it an ideal tool for hunting operations in challenging environments. Thanks to its innovative features and sophisticated design, it becomes an indispensable tool on the battlefield. The main advantages include:

1. High thermal sensitivity: With a NETD rating of ≤18mk@300k, this monocular provides excellent image clarity and accuracy, allowing you to detect even the smallest details in difficult lighting conditions.
2. Versatility of use: The monocular is suitable for a wide range of hunting applications, including reconnaissance, security, and long-range surveillance. Built-in altitude, azimuth and compass sensors ensure full control over the situation on the ground.
3. Reliability in any conditions: With an IP67 rating, the monocular works reliably in extreme conditions, providing resistance to water, dust and mechanical damage. Its operating temperature range of -25℃ to +55℃ allows it to be used in any climate.
4. High quality optics and display: An improved matrix and AMOLED display with a resolution of 1024×768 provide extraordinary image detail and brightness, allowing you to effectively detect targets even at long distances.
5. Long operating time: The built-in rechargeable battery allows the monocular to operate continuously for up to 20 hours, which is a significant advantage during long hunting expeditions where there is no access to power sources.
6. Compact and lightweight: The monocular weighs only 570 g and has compact dimensions of 67x66x221 mm, which makes it convenient for long periods of use and transportation, providing comfort even during long missions.
7. Digital functions and remote control: Wi-Fi support and a modern digital interface make it easy to connect additional accessories and perform remote control, adding convenience and flexibility to use.

This thermal imaging monocular is one of the best tools on the market, combining high functionality, reliability and comfort in use.

NETD: ≤18mk@300k

‍Optical zoom: 3.3x

‍Digital zoom: 1x ~ 4x continuous

‍Noise reduction: 3D DNR

‍Reticle: 6+, adjustable coordinates

‍Compass: Yes

‍Azimuth: Yes

‍Altitude sensor: Yes

‍Temperature sensor: Yes

‍Connection: Type-C port for charging, data reading, digital video output

‍Operating Temperature: -25℃～+55℃

‍Weight (with Battery): 570 g

‍Battery life: ≤ 20 hours

‍Detection range: 2000m

‍Field of View Angle: 7.5° x 5.6°

‍Lens: 35mm

‍Resolution / Pixel Distance: 384 x 288/12μm

‍Spectral Range: 8~14μm

‍Detector Type: VOx Microbolometer

‍Frame Rate: 50Hz

‍Noise Reduction: 3D noise reduction

‍AMOLED: 0.39 inches, resolution 1024×768

‍Eye relief: 40mm

‍Diopter Adjustment: -5 ~ +5

‍Memory Card: 64Gb

‍Thermal Tracking: Yes

‍Photo, Recording, Playback: Yes

‍Battery Type: Internal lithium-ion battery (18650 x 2)

‍Dimensions (mm): 67x66x221

‍Protection Level: IP67, drop resistance 1 meter

The thermal imaging monocular has a unique combination of characteristics that makes it an ideal tool for hunting operations. Thanks to its high resolution and sensitivity, it provides maximum efficiency even in the most difficult conditions. The key advantages of the monocular include:

1. Maximum sensitivity: With a NETD of ≤18mk@300k, this thermal imager is capable of detecting even the slightest temperature changes, allowing it to recognize objects at long distances with high accuracy.
2. Multifunctionality: This device is suitable for a variety of hunting applications, from reconnaissance to security and surveillance, making it a versatile tool for any situation.
3. Weatherproof: The monocular works reliably in all weather conditions, providing stable operation in temperatures ranging from -25℃ to +55℃. In addition, the IP67 protection level guarantees its resistance to dust and moisture, and can withstand drops from a height of up to 1 meter.
4. Improved matrix and new AMOLED display: The high quality sensor and 1024×768 resolution display provide a clear and detailed image, which is especially important for accurate surveillance at night or in low visibility conditions.
5. Long operating time and user-friendly interface: The built-in rechargeable lithium-ion battery provides not less than 16 hours of continuous operation, allowing the device to be used for extended missions without the need to recharge. The intuitive interface and support for Wi-Fi remote control make the device easy and efficient to use.
6. Advanced sensors and digital functions: Compass, azimuth, altitude and temperature sensors, as well as GPS support make this monocular indispensable for complete terrain control and orientation in difficult conditions. The digital interface allows you to connect additional accessories and save data to the built-in 64 GB memory card.
7. Light weight and compact size:Weighs only 620 g and has a compact size (67x66x224 mm), making it easy to transport and use in the field.

This thermal imaging monocular embodies the best of modern technology, providing exceptional reliability, accuracy, and ease of use. It will become a reliable partner in any hunting expedition, ensuring the safety and effectiveness of your actions.

NETD: ≤18mk@300k

‍Image Enhancement: IDE, HDR

‍Optical zoom: 2.8x

‍Digital zoom: 1x ~ 4x continuous

‍Noise reduction: 3D DNR

Reticle: 6+, adjustable coordinates

‍Compass: Yes

‍Azimuth: Yes

‍Altitude sensor: Yes

‍Temperature sensor: Yes

Connection: Type-C port for charging, data reading, digital video output

‍Operating: Temperature -25℃～+55℃

‍Weight (with Battery): 620 g

‍Battery life: ≤ 20 hours

‍Detection range: 2900m

‍Field of View Angle: 5.3° x 4.0°

‍Lens: 50mm

‍Resolution / Pixel Distance: 384 x 288/12μm

‍Spectral Range: 8~14μm

‍Detector Type: VOx Microbolometer

‍Frame Rate: 50Hz

‍AMOLED: 0.39 inches, resolution 1024×768

‍Eye relief: 40mm

‍Diopter Adjustment: -5 ~ +5

‍GPS: Yes

‍Memory Card: 64Gb

‍Thermal Tracking: Yes

‍Photo, Recording, Playback: Yes

Battery Type: Internal lithium-ion battery (18650 x 2)

‍Protection Level: IP67, drop resistance 1 meter

‍Dimensions (mm): 67x66x224

‍

This model of thermal imaging monocular offers professional features that make it one of the best choices for hunting in demanding environments. Its advanced features provide exceptional accuracy, reliability and comfort in use. Main advantages of the monocular:

1. Maximum sensitivity to temperature changes: With a NETD of ≤18mk@300k, the device is capable of detecting even slight temperature changes, which allows for excellent object recognition even in complete darkness or low visibility conditions.
2. Wide range of applications: The monocular is ideal for a variety of hunting applications, including long-range surveillance, reconnaissance, and security. Built-in sensors, such as compass and azimuth, provide full terrain orientation.
3. Security and reliability: The device is IP67-rated, which makes it resistant to water, dust, and drops from a height of up to 1 meter. This guarantees durability and stable operation in any field conditions.
4. High-quality optics and display: An improved sensor and the latest 1024×768 AMOLED display provide an extremely clear and detailed image, making it easy to identify objects at long distances.
5. Long battery life: The built-in rechargeable battery provides up to 20 hours of continuous operation, allowing you to perform long operations without the need for frequent recharging, which is especially important in the field.
6. Lightweight and comfortable: The monocular weighs only 730 g and is compact in size, making it easy to transport and use during long missions.
7. Intelligent features and connectivity: The monocular is equipped with a modern digital interface and supports Wi-Fi remote control, which makes it easy to connect additional accessories and control the device from a distance.

This thermal imaging monocular is an excellent choice for professionals looking for a reliable and efficient tool to perform demanding hunting tasks.

• NETD: ≤18mk@300k

• ‍Optical zoom: 2.4-4.8x

• ‍Digital zoom: 1x ~ 4x continuous

• ‍Noise reduction: 3D DNR

• ‍Reticle: 6+, adjustable coordinates

• ‍Compass: Yes

• ‍Azimuth: Yes

• ‍Altitude sensor: Yes

• ‍Temperature sensor: Yes

• ‍Connection: Type-C port for charging, data reading, digital video output

• ‍Weight (with Battery): 730 g

• ‍Battery life: ≤ 20 hours

• ‍Detection range: 1200m

• ‍Field of View Angle: 10.5° x 7.9° / 5.3° x 4.0°

• ‍Lens: 25-50 mm

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Microbolometer Vox

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Eye relief: 40 mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes

• ‍Memory Card: 64 Gb

• ‍Thermal Tracking: Yes

• ‍Photo, Recording, Playback: Yes

• ‍Battery Type: Built-in lithium-ion battery (18650 x 2)

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+55℃

• ‍Dimensions (mm): 73x73x241

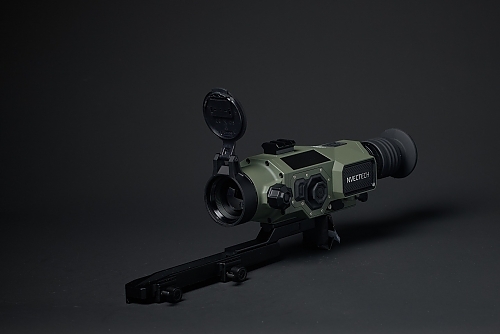

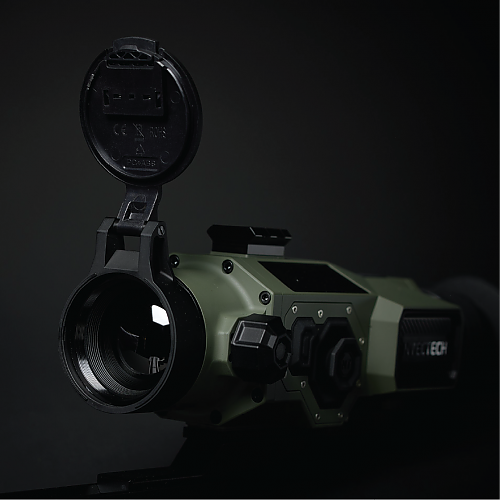

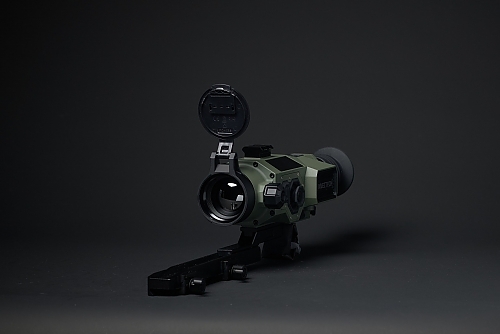

The Defender thermal imaging system is an advanced tool for professional use that provides accuracy and reliability in the most challenging conditions. Thanks to its innovative features and sophisticated design, it becomes an indispensable tool in hunting and security operations. The main advantages of this complex include:

1. High sensitivity and accuracy: The device provides exceptional thermal imaging accuracy with NETD ≤20mk@300k, making it easy to identify objects even in the most difficult conditions.
2. Wide range of applications: The thermal imaging system is suitable for various civilian tasks, thanks to the ability to smoothly zoom digitally from 1.0x to 4.0x. Azimuth, elevation, and temperature sensors provide full control over the situation.
3. Reliability in any conditions: The device has an IP67 protection level, which guarantees its resistance to water, dust, and mechanical damage. The complex can withstand drops from a height of up to 1 meter and operates in a temperature range from -25℃ to +50℃.
4. Advanced features: The built-in ballistic calculator and auto-aiming allow you to perform complex tasks with high accuracy. In addition, the CSFBC system and GEO dot function greatly improve operational effectiveness.
5. Long battery life: Replaceable batteries provide up to 18 hours of continuous operation, allowing for extended use without the need for frequent recharging.
6. Data recording and transfer: The device is equipped with 64 GB of internal memory, allowing you to store images and videos. The ability to transfer data via Type-C port and wireless communication greatly facilitates the processing and analysis of information.
7. Convenience and portability: The complex has compact dimensions of 379x75x110 mm and is easy to transport. Thanks to the standard Picatinny rail, the device can be easily integrated with other accessories.
8. Sensors for monitoring environmental conditions: Azimuth, compass, temperature, altitude, gyroscope, GPS.

This thermal imaging system is an ideal choice for professionals who require high accuracy, reliability, and functionality in performing their tasks.

• NETD: ≤20mk@300k

• ‍Optical zoom: 1.8x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes

• ‍Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: No

• ‍Wireless communication: Yes, only access point

• ‍Detection range: 1200 m

• ‍Recognition range: 800 m

• ‍Battery life: ≥ 18 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 13.8° x 10.4°

• ‍Lens: 19 mm

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Microbolometer Vox

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid: 7

• ‍Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to the eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x75x110

• ‍Other Accessories: Standard Picatinny Rail, eyepiece

‍

The Defender thermal imaging system combines advanced technologies that make it a powerful tool for hunting and security operations. Due to its high technical characteristics, this system provides unsurpassed accuracy and reliability in any conditions. The main advantages of this system are:

1. Maximum sensitivity and detail: With a NETD of ≤20mk@300k, the system provides high sensitivity and image accuracy, allowing you to effectively detect targets even in difficult lighting conditions.
2. Optical and digital zoom: Smooth and fast digital zoom from 1.0x to 4.0x allows for high image quality while observing at long distances, making this system a versatile tool for any combat tasks.
3. Reliability and durability: Thanks to the IP67 protection level, the complex can withstand extreme conditions, including drops from a height of up to 1 meter, and operates in a wide temperature range from -25℃ to +50℃.
4. Innovative features: The built-in ballistic calculator, AI rangefinder, and auto-aiming function greatly improve shooting accuracy. The CSFBC and GEO dot functions provide an additional tactical advantage during operational activities.
5. Long battery life: Replaceable batteries provide up to 18 hours of continuous operation, making this system a reliable partner for extended use.
6. Data recording and storage: The complex is equipped with 64 GB of memory for storing images and videos, and supports data transfer via Type-C port, providing ease of use and data processing.
7. Ease of use: The complex has a compact and lightweight design, making it easy to transport and install on various platforms. With the Picatinny mount, additional accessories can be installed.
8. Sensors for monitoring environmental conditions that are designed to monitor environmental conditions: Azimuth, compass, temperature, altitude, gyroscope, GPS.

This thermal imaging system combines all the necessary features for professional use, providing accuracy, reliability, and efficiency in the most demanding environments.

• NETD: ≤20mk@300k‍

• Battery life: ≥ 18 hours

• ‍Body material: Aluminum alloy

• ‍Optical zoom: 2.4x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes

• ‍Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: No

• ‍Wireless communication: Yes, only access point

• ‍Detection range: 1500 m

• ‍Recognition range: 1000 m

• ‍Field of View Angle: 10.5° x 7.9°

• ‍Lens: 25 mm

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Microbolometer Vox

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid7Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to the eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x75x110

The Defender thermal imaging system is an excellent solution for professional hunting tasks, providing high accuracy and reliability in a wide variety of conditions. Thanks to its advanced features and innovative technologies, this system will become an indispensable tool on the field and for observing animals.The main advantages of the complex are:

1. High sensitivity to temperature changes: NETD ≤20mk@300k allows the device to detect the slightest temperature variations, providing exceptional image clarity and detail in low visibility conditions.
2. Magnification capabilities: The system provides smooth and fast digital zoom ranging from 1.0x to 4.0x, allowing for high image quality while observing objects at various distances.
3. Security and reliability: Thanks to the IP67 protection level, the complex can withstand harsh environments, including drops from a height of up to 1 meter, and operates in a wide temperature range from -25°C to +50°C.
4. Advanced features to increase efficiency: The ballistic calculator, AI rangefinder and auto-fire function ensure high shooting accuracy. Additionally, the CSFBC and GEO dot functions provide an extra tactical advantage in operational situations.
5. Long battery life: Replaceable batteries provide up to 18 hours of continuous operation, making the system a reliable choice for extended hunting missions.
6. Data recording and processing: The device is equipped with 64 GB of memory for storing photos and videos and supports data transfer via Type-C port, greatly simplifying information processing.
7. Compact and ergonomic design: The system is compact and lightweight, making it easy to transport and install. With the Picatinny mount, additional accessories can be installed.
8. Fitted with sensors for environmental monitoring: Azimuth, compass, temperature, altitude, gyroscope, GPS.

The Defender thermal imaging system offers high accuracy, reliability, and efficiency, making it an indispensable tool for any hunting mission.

• NETD: ≤20mk@300k

• ‍Optical zoom: 3.3x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes

• ‍Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: No

• ‍Wireless communication: Yes, only access point

• ‍Detection range: 2000 m

• ‍Recognition range: 1300 m

• ‍Battery life: ≥ 18 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 7.5° x 5.6°

• ‍Lens: 35 mm

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Vox Microbolometer

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid: 7

• ‍Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x75x110

The Defender thermal imaging system is a high-tech tool that combines advanced capabilities to ensure maximum efficiency during hunting operations. This system guarantees the precision and reliability required for complex combat missions and animal observation. Its main advantages are:

1. Sensitivity and detail: With a NETD of ≤20mk@300k, the system detects the slightest temperature changes, allowing you to recognize targets even in difficult visibility and lighting conditions.
2. Wide magnification capabilities: The device is equipped with digital zoom ranging from 1.0x to 4.0x, allowing for precise observation of objects at various distances while maintaining high image quality.
3. Reliability in any conditions: The system is IP67-rated, guaranteeing its resistance to water, dust, and drops from a height of up to 1 meter. It also operates in a wide temperature range from -25℃ to +50℃.
4. Innovative features: The built-in ballistic calculator, 1200m LRF rangefinder, and auto-aiming function greatly improve shooting accuracy. The CSFBC and GEO dot functions add a tactical advantage in operational situations.
5. Long battery life: The built-in battery provides up to 18 hours of continuous operation, allowing for extended missions without the need for frequent recharging.
6. Data recording and storage: The device is equipped with 64GB of memory for data storage and also supports Type-C data transfer for ease of use.
7. Compact design and ease of use: The system is compact and lightweight, making it easy to transport and install. With the Picatinny mount, additional accessories can be installed.
8. It is equipped with sensors for environmental monitoring: Azimuth, compass, temperature, altitude, gyroscope, GPS.

This thermal imaging system is an ideal choice for professionals who need a reliable and effective tool for performing complex tasks in the field.

• NETD: ≤20mk@300k‍

• Optical zoom: 3.3x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes

• ‍Altitude sensor: Yes

• ‍Azimuth: Yes‍

• Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: 1200m

• ‍Wireless communication: Yes, only access point

• ‍Detection range: 2000 m

• ‍Recognition range: 1300 m

• ‍Battery life: ≥ 18 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 7.5° x 5.6°

• ‍Lens: 35 mm

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Vox Microbolometer

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid7Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x100x110

The Defender thermal imaging system is designed for professional use in extreme conditions and offers a high degree of accuracy and reliability. Thanks to its innovative features, this system is an indispensable tool in hunting and security operations. The main advantages of the system are:

1. High thermal sensitivity: NETD ≤20mk@300k delivers precise and detailed images that enable targets to be recognized even under the most difficult lighting conditions.
2. Magnification for all conditions: The system provides smooth optical zoom from 1.8x to 5.5x and digital zoom from 1.0x to 4.0x, allowing for high image quality at various distances, enhancing shooting accuracy.
3. Reliability under all conditions: The device has an IP67 protection rating, making it resistant to water, dust and mechanical damage and ensuring stable operation in a temperature range from -25℃ to +50℃.
4. Innovative functions for combat: The ballistic calculator, the LRF rangefinder at 1200 meters and the automatic fire function make this system ideal for complex missions. The CSFBC system and the GEO point function increase tactical effectiveness.
5. Long battery life: Replaceable batteries provide up to 18 hours of continuous operation, making the system a reliable choice for long hunting missions.
6. Data recording and storage: The device is equipped with 64 GB memory for photos and videos and supports data transfer via a Type-C port, which simplifies the information processing process.
7. Practical and lightweight design: The system has compact dimensions of 379x100x110 mm, making it easy to transport and install. With the Picatinny mount, additional accessories can be installed.
8. Equipped with sensors for monitoring the environment: Azimuth, compass, temperature, altitude, gyroscope, GPS.

This thermal imaging system combines advanced technology, high precision and reliability, making it an ideal tool for any hunting mission.

• NETD: ≤20mk@300k

• ‍Optical zoom: 1.8x-5.5x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍GPS: Yes

• ‍Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: 1200m

• ‍Wireless communication: Yes, only access point

• ‍Detection range: 3600 m

• ‍Recognition range: 2000 m

• ‍Battery life: ≥ 18 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 13.1°x9.8°/ 4.4°x3.3°

• ‍Lens: 20/60

• ‍Resolution / Pixel Distance: 384 x 288/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Vox Microbolometer

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid: 7

• ‍Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x100x110

The Defender thermal imagingsystem is one of the most advanced tools for hunting operations, combining advanced technology and reliability. Thanks to its unique capabilities, this system provides exceptional functionality and precision in the most difficult conditions. The main advantages of this complex are:

1. Maximum sensitivity to thermal signals: With a NETD of ≤20mk@300k, the system detects even the slightest temperature changes, allowing you to get a clear and detailed image even in complete darkness.
2. Magnification for different distances: Smooth optical zoom from 1.1x to 3.2x and digital zoom from 1.0x to 4.0x allow for effective observation of objects at different distances, maintaining high image quality and shooting accuracy.
3. Reliability and security: The device is designed to operate in extreme environments and is IP67-rated, which provides resistance to water, dust, and mechanical damage. It also operates in a wide temperature range from -25℃ to +50℃.
4. Innovative features for combat missions: The ballistic calculator, LRF rangefinder at 1200 meters and auto-firing function allow for high precision. The CSFBC system and GEO dot function provide additional tactical advantages.
5. Long battery life: Replaceable batteries provide up to 16 hours of continuous operation, allowing for extended operations without the need for frequent recharging.
6. Data storage and processing: The device is equipped with 64 GB of memory for storing photos and videos, and supports data transfer via Type-C port, which makes it easy to use and process information.
7. Compact and convenient design: The complex has a compact size of 379x100x110 mm and is easy to transport, making it convenient for use in the field. With the Picatinny mount, additional accessories can be installed.
8. It has sensors for environmental analysis: Azimuth, compass, temperature, altitude, gyroscope, GPS.

The Defender thermal imaging system is the best choice for professionals who require precision, reliability, and efficiency in the performance of hunting missions.

• NETD: ≤20mk@300k

• ‍Optical zoom: 1.1x-3.2x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes‍

• Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: 1200m

• ‍Detection range: 3600 m

• ‍Wireless communication: Yes, only access point

• ‍Recognition range: 2000 m

• ‍Battery life: ≥ 16 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 21.7°x17.4°/ 7.3°x5.9°

• ‍Lens: 20/60

• ‍Resolution / Pixel Distance: 640 x 512/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Vox Microbolometer

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid: 7

• ‍Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x100x110

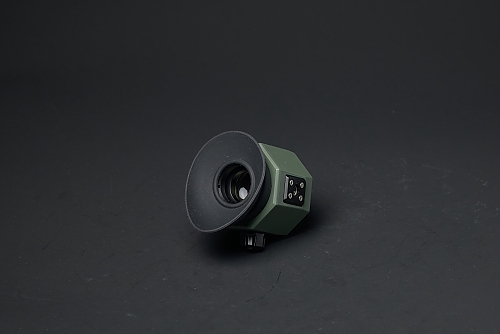

A new technology from NVECTECH that connects the DEFENDER thermal imaging system to the eyepiece (OCULAR) and you can see in it what you see in the Defender. The eyepiece is made of aircraft aluminum and has a high resolution HD display. Zoom, diopter adjustment and screen brightness are provided.

The eyepiece is connected to the complex via a special reinforced cable, designed in two parts for quick detachment in case a quick reset is needed. The cable is equipped with a snake that extends up to 2.4 meters. Quick release clips are used on each side of the cable connection to eliminate the factor of unexpected disconnection at the right moment.

The eyepiece has an eyecup that follows the anatomy of the face to maximize the comfort of hands-free viewing. The very light weight is not felt when mounted on a helmet or helmet. We are one of the few who have created the perfect device for conducting surveillance from behind cover without exposing yourself to detection.

Ocular is only used (switched) with DEFEBDER thermal imaging cameras.

The perfect device to keep you alive and undetected in your arsenal.

• Dimensions (mm) 70×85×90

• ‍AMOLED 1024×768 HD

• ‍Weight (with Battery) 220 g

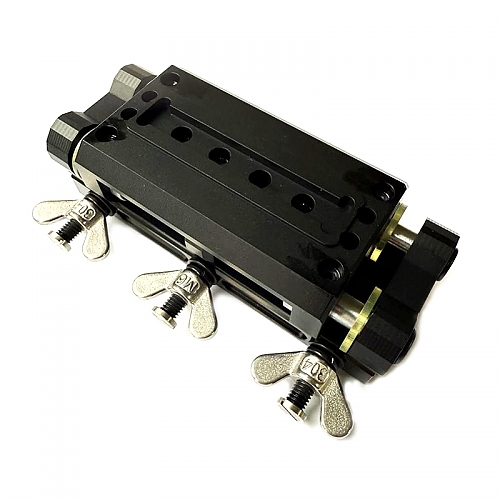

NVECTECH bracket with recoil damper for DEFENDER thermal imaging systems. Specially designed to absorb impacts up to 10,000J. Balances recoil to reduce the load on the device. Made of aluminum alloy with the addition of steel.

Dimensions (mm) 120×45×60

‍Weight (g) 500
