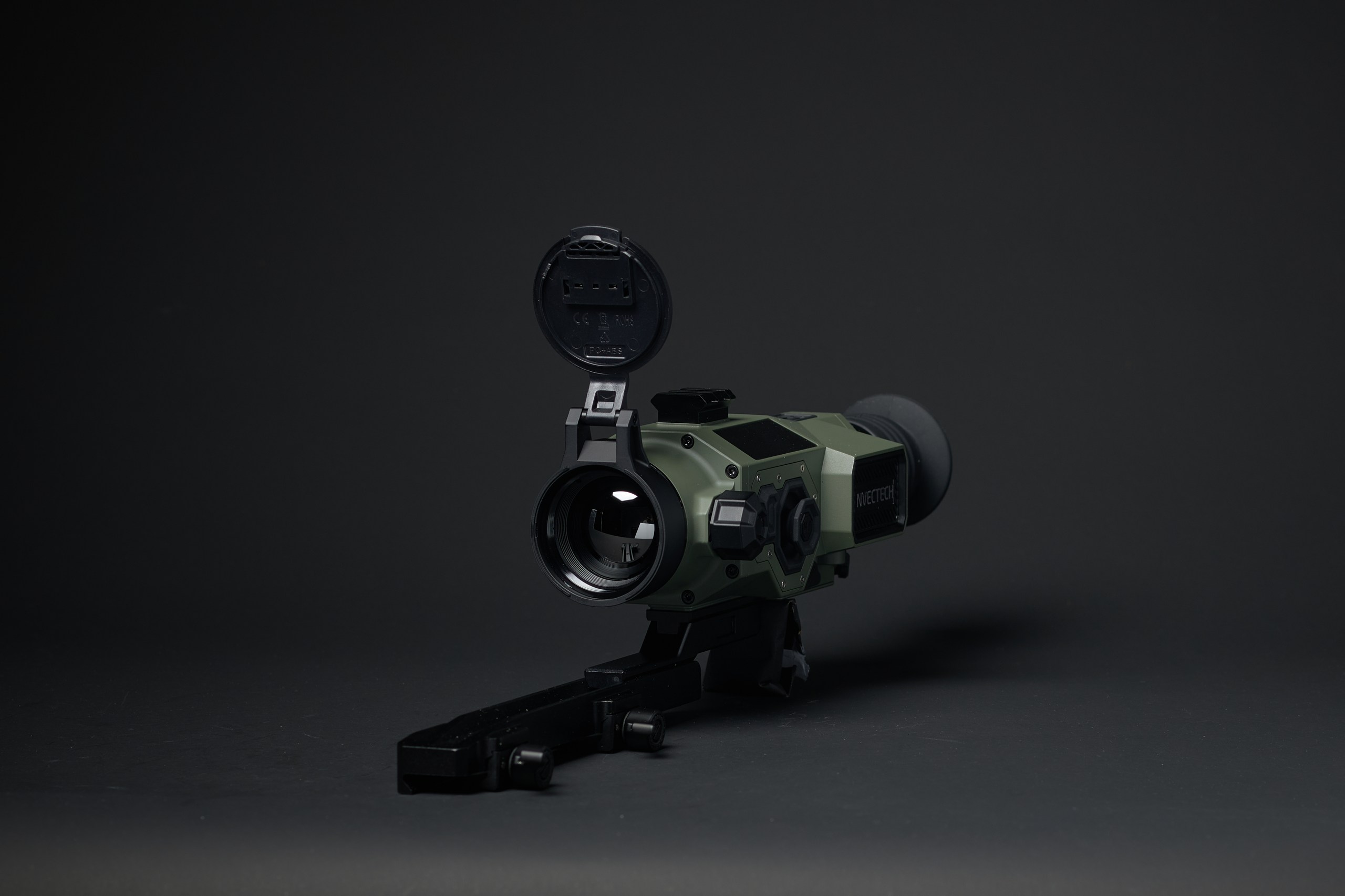

DEFENDER 660L

The Defender thermal imagingsystem is one of the most advanced tools for hunting operations, combining advanced technology and reliability. Thanks to its unique capabilities, this system provides exceptional functionality and precision in the most difficult conditions. The main advantages of this complex are:

1. Maximum sensitivity to thermal signals: With a NETD of ≤20mk@300k, the system detects even the slightest temperature changes, allowing you to get a clear and detailed image even in complete darkness.
2. Magnification for different distances: Smooth optical zoom from 1.1x to 3.2x and digital zoom from 1.0x to 4.0x allow for effective observation of objects at different distances, maintaining high image quality and shooting accuracy.
3. Reliability and security: The device is designed to operate in extreme environments and is IP67-rated, which provides resistance to water, dust, and mechanical damage. It also operates in a wide temperature range from -25℃ to +50℃.
4. Innovative features for combat missions: The ballistic calculator, LRF rangefinder at 1200 meters and auto-firing function allow for high precision. The CSFBC system and GEO dot function provide additional tactical advantages.
5. Long battery life: Replaceable batteries provide up to 16 hours of continuous operation, allowing for extended operations without the need for frequent recharging.
6. Data storage and processing: The device is equipped with 64 GB of memory for storing photos and videos, and supports data transfer via Type-C port, which makes it easy to use and process information.
7. Compact and convenient design: The complex has a compact size of 379x100x110 mm and is easy to transport, making it convenient for use in the field. With the Picatinny mount, additional accessories can be installed.
8. It has sensors for environmental analysis: Azimuth, compass, temperature, altitude, gyroscope, GPS.

The Defender thermal imaging system is the best choice for professionals who require precision, reliability, and efficiency in the performance of hunting missions.

• NETD: ≤20mk@300k

• ‍Optical zoom: 1.1x-3.2x

• ‍Digital zoom: 1.0-4.0x smooth and fast

• ‍Eye relief: 45mm

• ‍Diopter Adjustment: -5 ~ +5

• ‍GPS: Yes‍

• Altitude sensor: Yes

• ‍Azimuth: Yes

• ‍Temperature sensor: Yes

• ‍Compass: Yes

• ‍Reticle color: Black, white, yellow, blue, green, red, auto mode

• ‍Maximum recoil force: 10000J

• ‍Auto-adjustment: Yes

• ‍Manual adjustment: Yes

• ‍Adjustment profiles: 5

• ‍Picture-in-picture: Yes

• ‍AI rangefinder: Yes

• ‍Gyroscope: Yes

• ‍CSFBC (Combat system from behind cover): Yes

• ‍GEO dot: Yes

• ‍OSD recording: Yes

• ‍Ballistic calculator: Yes

• ‍Laser rangefinder: 1200m

• ‍Detection range: 3600 m

• ‍Wireless communication: Yes, only access point

• ‍Recognition range: 2000 m

• ‍Battery life: ≥ 16 hours

• ‍Body material: Aluminum alloy

• ‍Field of View Angle: 21.7°x17.4°/ 7.3°x5.9°

• ‍Lens: 20/60

• ‍Resolution / Pixel Distance: 640 x 512/12μm

• ‍Spectral Range: 8~14μm

• ‍Detector Type: Vox Microbolometer

• ‍Frame Rate: 50 Hz

• ‍AMOLED: 0.39 inches, resolution 1024×768

• ‍Memory Card: 64 Gb

• ‍Photo, Recording, Playback: Yes

• ‍RAV: Yes

• ‍Grid: 7

• ‍Battery Type: Replaceable 18650 batteries x 2

• ‍Type-C: Data transmission, connection to eyepiece

• ‍Protection Level: IP67, drop resistance 1 meter

• ‍Operating Temperature: -25℃～+50℃

• ‍Dimensions (mm): 379x100x110
